2.17.2012

So That's Why Picture Frames are Expensive

With 4 National Park posters to frame...

... and another 2 purchased (Chris and I have a rule that we only get these posters from parks we've been to)

(found here)

(found here) ...Chris and I headed out to see how much it would cost to get 6 16x20 frames. The answer? Not cheap. Man, picture frames weirdly cost a lot. Not technically a lot, but for it just being 4 pieces of wood joined together with a piece of glass on top I wanted to barf when I saw the $45 price tag at Michaels. Even with the coupons they always have, it was going to be nearly $150 just in frames. Chris was especially flabbergasted and looked at me and asked, "Why don't we just figure out how to build them?"

FABULOUS idea!

And so started a new adventure in building.

We made a practice one in MDF (only a $6 investment). We measured things out to see what length all the sides needed to be

We went for a 3/8"-ish reveal all around the border of the artwork, and once all the lengths were cut...

...we used the dado stack on the tablesaw and cut a rabbet out in the back (the groove the artwork and glass would sit in)

Next, we consulted the router bits to see what kind of detail we would cut into the edges

I settled on a Roman Ogee

We left the interior edge alone because the MDF stock came with one rounded edge, and after we used the router table to cut the other side we used these right angle brackets called V nails to attach everything together

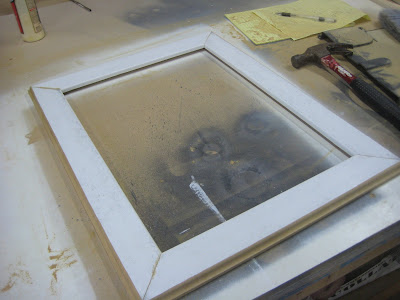

And then, we were done!

Neither of us was super thrilled with the edges of the MDF (they can tend to fray)

But because this was just our $6 test run, we weren't too broken up about it. We were pretty sure however that we had a pretty good system worked out for putting them all together so we headed out to HD and bought 3" poplar stock for our 6 frames - for a total of $60.

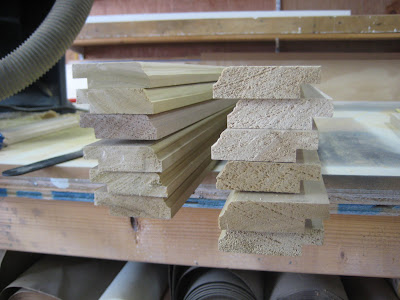

With our stock purchased the first step was using the dado to cut the rabbet in the back

Next, we used the router table again to cut the outside pattern into the stock (we switched things up and used a Double Roman this time around)


This time around we had to cut the inside as well (poplar doesn't come with a rounded edge, damnit.) So we ran it through the router table again to make the inside edge rounded over.

At this point we cut all the stock down to the lengths we needed

We could have done that step before, but with 6 frames and 4 pieces per frame that would be 24 runs with the dado, the router on the outside edge, and the router on the inside edge. Cutting the lengths down after all that work was done made things go a lot faster. We cut 4 pieces for the first frame, made sure everything lined up correctly, then used that set as a template to cut all the other wood for the remaining 5 frames.

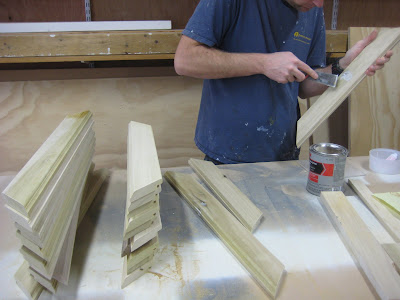

Once all the lengths were cut down we sanded and patched (some areas needed to be patched where knots were)

Next, we set things up to get assembled

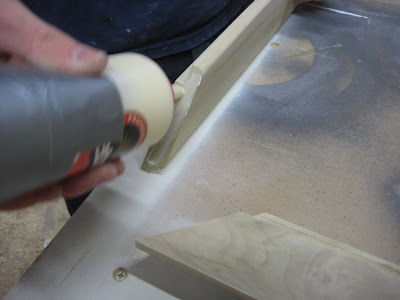

We ran a bead of wood glue on all the ends

Used the same hardware...

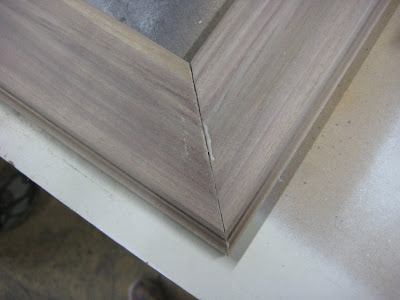

...and it was a working frame! When we flipped it over there were small gaps in the corners

But by running a small amount of wood glue into that gap and sanding over it, sanding dust filled in the gap and fixed in place because of the bead of wood glue we'd ran over it

And then, the frame was complete!

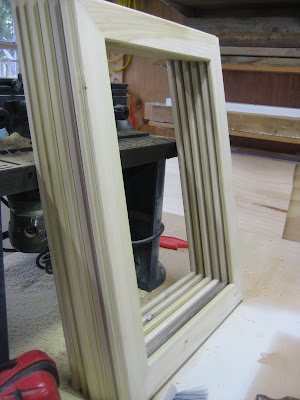

We repeated the process 5 more times

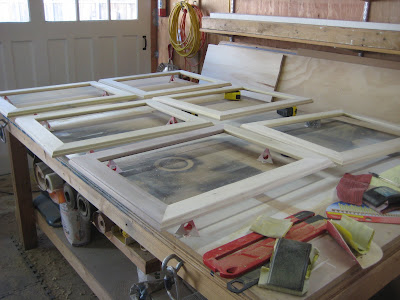

The next day I laid everything out...

...and did some minor sanding here and there and then painted everything with one coat of primer and two coats of glossy white (the same white on the corbels and fireplace surround)

Oh, but we're still not done.

THEN we went and got 6 pieces of glass from HD. They were sized a bit wider than we needed, but not long enough which we found out after we already cut down the first one, whoopsie. So we returned the other 5 pieces of glass from HD (the first one only cost $5) and we called a local glass place and got 6 pieces cut at the exact size we needed for $25 total.

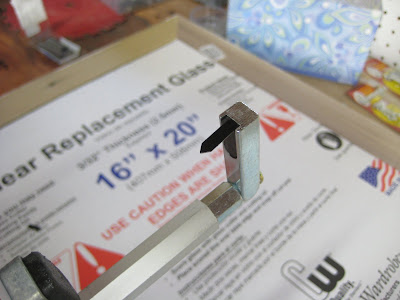

We brought the glass home, placed it in the frame, dropped in our artwork, cut a piece of cardboard down to size for the backing and used a handy tool called Picture Frame Pliers Chris bought online (for $11) to insert glazing points to keep everything in place



We repeated the process for 3 more frames (we're still waiting on the other two NP posters we just bought online a couple days ago), and then brought everything inside

I think they look really good, especially considering we've never built picture frames before. The total: $60 for poplar, $25 for glass, $11 for the glazing tool, less than $1 for the glazing points (we bought a big pack of them), and $11 in practice materials ($6 of MDF, $5 in our first piece of glass) = $108. All in all we didn't save much, but, we now have 6 frames that are built to the perfect size we want them to be, and if we want to build any frames in the future (and I've already thought of a few), we've got the tools to do it, so it'll just get cheaper and cheaper.

The upside? We learned a new skill and the frames are pretty :)

We're just waiting for those last 2 prints to arrive and then all 6 frames will go up!

P.S. Seeing those lovely floors still get me all excited, eeeee!!!!! :)

10 comments:

Anonymous said...

Show offs. Just kidding, they look great!

Gene said...

Awesomeness. And you can make frames to fit your art.

meryl rose said...

EXACTLY! I've already got a couple in mind :)

Bunny @ 86n It said...

They look great!

Heather said...

There isn't much you two can't do, is there? They look great and you are going to save so much money in the long run with this skill!

aptpupil said...

i try to get us to do as much as possible that way i always have an excuse to get more toys, er, tools.

Sara @ Russet Street Reno said...

Wow they look great!! That is really impressive, and the knowledge is worth the project for sure.

Anne said...

I'm impressed with the outcome of the frames. It was really a good choice to use the Roman Ogee
router bits.

Veronique @mymauritiangarden said...

A quick question - if you were going to paint the frames anyway, why wouldn't you just fill the raggedy edges of the MDF with woodfiller and then sand them back before painting? Surely that would have kept the cost down? Was there a particular reason why you didn't do that? A friend is looking to make a few(cheap)frames, and I'm doing some research for him. Your floors do look great!

meryl rose said...

We didn't use MDF because it's a composite material and we wanted to router our edges. With MDF when you sand it gets frayed and the edges are not smooth - routering the edges of MDF would have made this even worse and all the edges would have looked bad. If you have a 90 degree corner on all the interior and exterior edges of your frame, MDF probably would be okay to use, but if you want to sand, round, or router the inside or outside edges I would not suggest using MDF and instead use something like poplar (an inexpensive hardwood that looks great).
